Product Description
Specification
|
Model Type
|
TP-YY48100HR
|
TP-YY48200HR
|
TP-YY48300HR
|
|||
|
Electrical Characteristics
|
|
|
|
|||
|
Rate voltage(Vdc)
|
48
|
48
|
48
|
|||
|
Rate capacity(AH)
|
100
|
200
|
300
|
|||
|
Energy storage(KWH)
|
4.8
|
9.6
|
14.4
|
|||
|
Cycle life
|
≤2%
|
|
|
|||
|
Efficiency of charge
|
100% at 0.2C
|
|
|
|||
|
Efficiency of discharge
|
96-99% at 1C
|
|
|
|||
|
Standard Charge
|
|
|
|
|||
|
Charge voltage
|
58.4V
|
|
|
|||
|
Charge mode
|
0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
|
|
|
|||
|
Charge current(A)
|
20
|
40
|
60
|
|||
|
Max. Charge current(A)
|
100
|
200
|
240
|
|||
|
Charge cut-off voltage(VDC)
|
58.4V
|
|
|
|||
|
Standard Discharge
|
|
|
|
|||
|
Contiunous current(A)
|
100
|
200
|
300
|
|||
|
Discharge cut-off voltage(VDC)
|
44.8V
|
|
|
|||
|
Environmental
|
|
|
|
|||
|
Charge temperature
|
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
|
|
|
|||
|
Discharge temperature
|
(-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity)
|
|
|
|||
|
Storage temperature
|
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
|
|
|
|||
|
Mechanical
|
|
|
|
|||
|
IPclass
|
IP48
|
|
|
|||
|
Material system
|
LiFePO4
|
|
|
|||
|
Case material
|
Metal
|
|
|
|||
|
Case Type
|
Rack Mount
|
|
|
|||
|
Package Dimension
|
585*515*345
|
600*600*360
|
570*420*740
|
|||
|
Net Weight(kg)
|
52.8
|
88.5
|
64.5
|
|||
|
Gross Weight(kg)
|
55.6
|
137
|
152
|
|||
|
Terminal
|
MB
|
|
|
|||
|

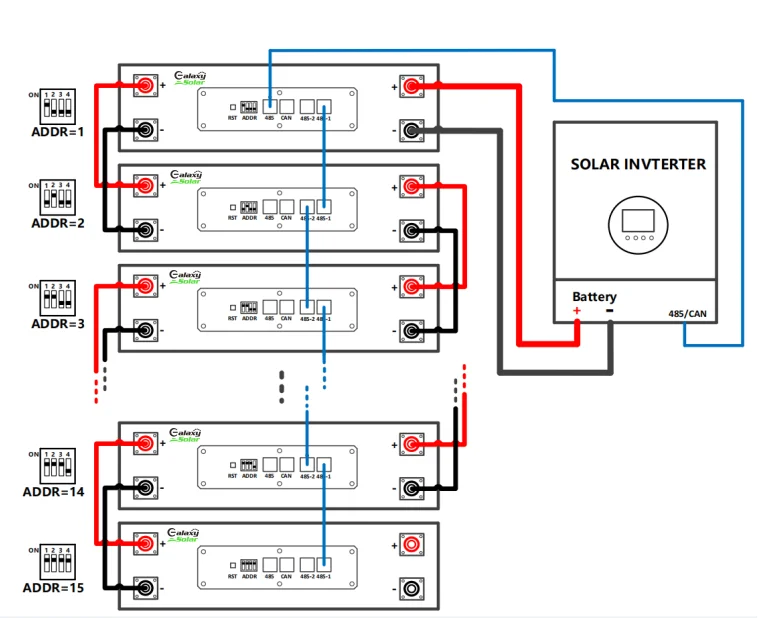

Communication port
|
CANBus/RS485/RS232
|
|
|
|||
|
SOC (Optional)
|
LED/LCD
|
|
|
|||
|
Warranty
|
60 months
|
|
|
|||

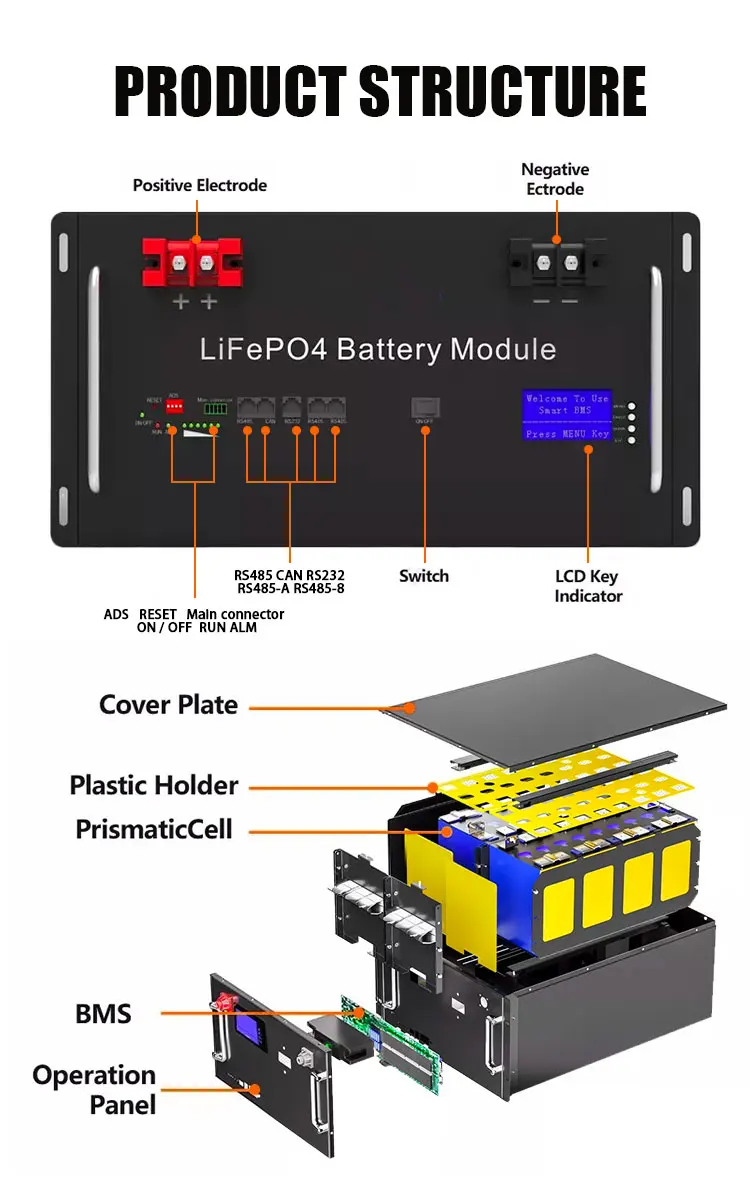

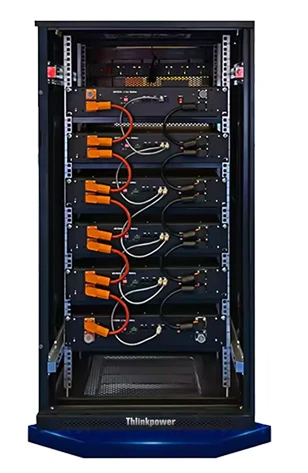

I Rack mounted energy I storage battery
A:T/T,LIC,Paypal,western Union etc. Q:What are the advantages of your company? A:We are a factory.and we also cooperate with other brands,such as Longi, JA Solar, Jinko,Trina, Canadian Solar, GCL, SUNTECH,Yingli etc., to provide customers with better prices and more choices. Q:May l have a piece of sample to check the quality? A:Welcome to place the testing order to check the quality or for testing. Q:How about the delivery time? A:15-20 days after receiving your payment. The specific delivery time depends on the items and the order quantity. Q:Where is the port of loading? A:Shanghai,Ningbo. Q:can you do OEM? A:Yes.
